Extraction: X-TRACTION

1. Solvent ports

Supply with up to 5 different solvents possible

2. Display

One display with touch screen (7.0″, 1024 x 600 (WSVGA)) for all devices (max. 6 devices) and freely adjustable tilt angle.

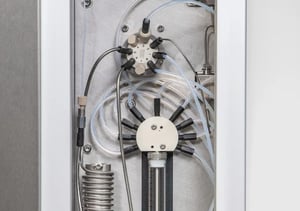

3. Fluidic

  • Easily accessible fluidic compartment to all fluidic parts.
  • Pressurised fluidic connections from SST capillaries.
  • Outlet capillary with large inner diameter.
  • Syringe pump (0.1 – 80 ml/min.) for solvent supply.

4. Heating Block

  • Best possible heat transfer: Extraction cell is completely enclosed by heating jaws.
  • Parameterisable temperature range: 20° C – 200° C.
  • Extraction cell is filled with solvent from above and below for best possible wetting of the sample.
  • Efficient extractions at low pressures (~ 10 bar).

5. Vial

Vial holder for 60 mL vials, 250 mL vials, 85 mL D-EVA vials

AS SIMPLE AS IT IS INGENIOUS:

The Extraction Cell

The cell lids, equipped with magnets, allow exceptionally easy opening and closing without threads or additional tools.

The cell with a capacity of up to 75 mL is composed of only a few parts. The stainless steel design makes it particularly robust.

This makes it universally applicable for all required applications.

Flexibility for Maximum Performance

To parallelise your process, the basic module can be directly adapted to your needs via a data cable with up to 5 expansion modules which can be upgraded at any time.

Flexible operation options of the modules via a central touchpad:
Individual: All units run with different methods
Parallel:  All systems, simultaneously with the same method
Mixed-mode: Any number of units run in parallel. Remaining modules individually.

Flexibilität für maximale Leistung

More Special Features

No cross contamination

Rinsing cell for rinsing process (with 10 mL each)

High reproducibility

Significant replication due to extremely fast processing times

Safety functions

Solvent-free leak test, mechanical pressure relief valve (reusable)

Few consumables

Only 1 glass fibre filter per sample, low solvent consumption

Few consumables

Only 1 glass fibre filter per sample, low solvent consumption

BETTER EXTRACTION PERFORMANCE

X-TRACTION® PFAS

PFAS analysis requires special conditions, including during the preparation of samples, such as freedom from blank values for all of the materials and equipment used. The analyte spectrum is continually being expanded here, so more and more long-chain PFAS are also coming into focus. When extracting PFAS analytes from solids according to the current draft of US EPA 1633, it has been shown that long-chain PFAS and neutral sulphonamides cannot be adequately recovered with conventional cold extraction using solvents. It has been possible to significantly improve these excessively low values for long-chain PFAS with extraction via X-TRACTION® as a PFAS version (guaranteed free from blank values!) using Pressurised Fluid Extraction (PFE). The diagram of the extraction of doped soil matrix shown documents this.

Guaranteed Blind Value-Free!

No detectable background concentrations of PFAS

All materials within the fluidics have been replaced with PTFE-free components.

Guaranteed Blind Value-Free!
